SF35-2000 High Speed 350m/min Steam Heating Single Facer Machine with 2000mm Width and Negative Pressure Design for Corrugated Cardboard Production

1 zestaw
MOQ
To be negotiated
Cena £
SF35-2000 High Speed 350m/min Steam Heating Single Facer Machine with 2000mm Width and Negative Pressure Design for Corrugated Cardboard Production
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Nazwa: pojedyncza twarz
Stosowanie: Wykonanie kresków
Kolor: Biały
Gwarancja: 1 rok
Materiał opakowaniowy: Plastik, papier, drewno
woltaż: 220 V/380 V/440 V
Stan: Nowy
Typ napędzany: Elektryczny, pary
Podstawowe informacje
Miejsce pochodzenia: Hebei, Chiny
Nazwa handlowa: GR
Orzecznictwo: CE,ISO
Numer modelu: SF30-2000
Zapłata
Szczegóły pakowania: Pokrycie folią z tworzywa sztucznego lub opakowanie z drewnianą skrzynką (opcjonalnie)
Czas dostawy: 30-60 DNI
Zasady płatności: L/C, T/T, Western Union, MoneyGram
Możliwość Supply: 20 zestawów/miesiąc
opis produktu
SF35-2000 High Speed Corrugated Cardboard Production Line
SF-35 Cassette Single Facer Machine 2000mm Width Steam Heating Suction Type for Corrugated Cardboard Production

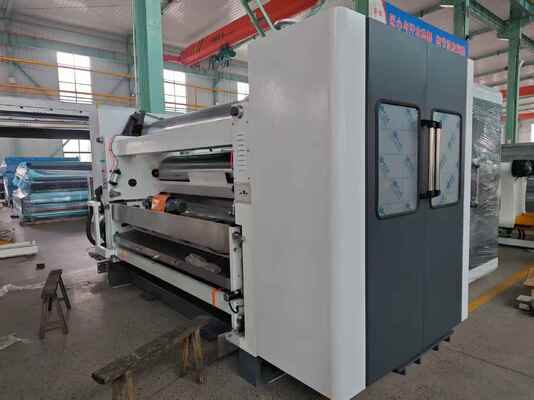

SF35-2000 High Speed 350m/min Steam Heating Single Facer Machine with 2000mm Width and Negative Pressure Design for Corrugated Cardboard Production 0
Product Overview
High Speed Steam Heating Single Face Machine for corrugated cardboard production, featuring advanced negative pressure design and quick-change roller system.
Key Features
  • Main corrugating roller: Ø500mm (varies by flute), pressure roller Ø600mm, preheat roller Ø500mm
  • Negative pressure design reduces heat consumption and ensures even core paper pressing for superior corrugate molding
  • Quick roller change in 10 minutes with electric trolley loading and air pressure locking system
  • Corrugated roller made from 50CrMo high-quality alloy steel with heat treatment and tungsten carbide surface
  • Airbag control system for corrugated and pressure rollers with barometric pressure buffering
  • Electric glue volume control with independent operation capability
  • Movable glue unit for easy cleaning and maintenance
  • User-friendly touch screen interface with color display for operation status and parameter settings
  • Built-in pre-conditioner with proportional spraying for core paper temperature and moisture adjustment
  • High-temperature grease bearings for main and auxiliary corrugating and pressure rollers

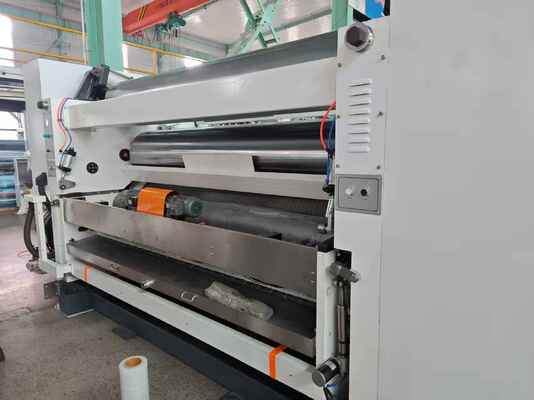

SF35-2000 High Speed 350m/min Steam Heating Single Facer Machine with 2000mm Width and Negative Pressure Design for Corrugated Cardboard Production 1
Technical Specifications
Parameter Specification
Effective Width 2000mm
Design Speed 350m/min
Economic Speed 230-350m/min
Paper Feed Range 850-2050mm
Maximum Steam Temperature 200℃
Steam Pressure 1.2Mpa
Working Power 380V 50Hz 37KW
Packaging & Shipping
Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.
SF35-2000 High Speed 350m/min Steam Heating Single Facer Machine with 2000mm Width and Negative Pressure Design for Corrugated Cardboard Production 2
Our Services
  • Professional technicians assigned to client's site for equipment installation, commissioning, and operator training
  • Free training available at our company for operators and maintenance personnel upon request
  • Detailed installation and operation manuals provided with equipment
  • Free plant layout design available upon client request
  • One-year quality warranty with free maintenance and replacement of wearing parts
  • Long-term maintenance service and cost-price parts supply after warranty period
  • 24/7 complaint response system with resolution within 24-48 hours
