NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Product name: NC Cutter
Efektywna szerokość: 2200 mm
Operation direction: Customizable
Maksymalna prędkość robocza: 100M/MIN
Konfiguracja mechaniczna: Przecinarka spiralna sterowana komputerowo
Minimalna długość cięcia: 500 mm
Maksymalna długość cięcia: 9999 mm
Precyzja cięcia: jednolite ± 1 mm, niejednolite ± 2 mm
Rozmiar sprzętu: Lmax4,2*Wmax1,2*Hmax1.4
Pojedyncza waga: MAX3500 kg
Podkreślić:

NC Cutter

,

linia produkcyjna kartonu falistego

Podstawowe informacje
Miejsce pochodzenia: Dongguang, Chiny
Nazwa handlowa: GERUN
Orzecznictwo: ISO,CE
Numer modelu: GR-NC
Zapłata
Szczegóły pakowania: Pokrycie folią z tworzywa sztucznego lub opakowanie z drewna (wybrane)
Delivery Time: 10~30 work days
Payment Terms: T/T
Możliwość Supply: 30 zestawów/miesiąc
opis produktu

NC-100 NC cutter helical knives



The corrugated paper cross-cutting machine, also known as a cross-cutting machine, falls under the category of carton processing machinery. Within a corrugated cardboard production line, the corrugated paper cross-cutting machine is the equipment used for cutting the cardboard into finished products. Its technical performance and equipment adjustment directly impact the precision of the final cut size, whether the creases break, and the smoothness and appearance of the cut edges of the finished cardboard.


The corrugated paper cross-cutting machine is one of the essential standalone machines in a corrugated cardboard production line. There are two types of cross-cutting machines based on the transmission control method: mechanical cross-cutting machines and computer-controlled cross-cutting machines. Computer-controlled cross-cutting machines are operated through industrial control computers. They cut the cardboard by controlling the rotation of the knife shaft based on the preset length. Combined with precise mechanical transmission, these machines can keep cutting errors within a range of ±1mm. Computer-controlled cross-cutting machines include helical knife cross-cutting machines and straight knife cross-cutting machines. Helical knife cross-cutting machines are more suitable for high-speed cutting of thick cardboard, providing smooth cuts and longer blade life.



Functional Features:

  • All gears of this machine are precision-ground from high-quality steel, ensuring smooth transmission, low noise, and long lifespan.
  • The advanced structure of the blade holder allows for easy adjustment, with the knife shaft treated for static balance and smooth operation.
  • The machine's transmission mechanism utilizes a lubrication pump for circulating lubrication.
  • Equipped with a new generation computer system from Taiwan or Germany, offering excellent performance and extended trouble-free operation.
  • Users can choose between imported and domestically produced blades.
  • Suitable for corrugated cardboard production lines with three, five, or seven layers.

Roller diameter parameters:

  • Cross on the knife shaft center distance:¢216mm
  • Before the lower conveying roller diameter ¢156mm
  • After the lower conveying roller diameter: ¢156mm
  • The front of the platen roller diameter: ¢70mm
  • The front of the platen roller diameter: ¢70mm
Name of main parts Brands or place of origin Material and type
Full AC servo motor Shanghai futian 18.5KW
Feeding frequency motor Hebei hengshui yongshun
bearing HRB,ZWZ,LYC Up and down the knife roller bearings from Japan NSK
belt Germany OPTIBELT
Up sleeve Xianyang chaoyue
Seat belt bearing Zhejiang wuhuan
Contactors and relays, relays of middle France Schneider
Proximity Switch Japan OMRON
Flying shear servo control system America Emerson
Motion control board Germany MKS-CT150
Rotary encoder Wuxi ruipu
Feeding drive Taiwan delta
Human Machine Interface Taiwan WEINVIEW or MCGS
Sun gear China shenzhen
Pneumatic components Zhejiang sonorCSM
Frequency Converter Siemens

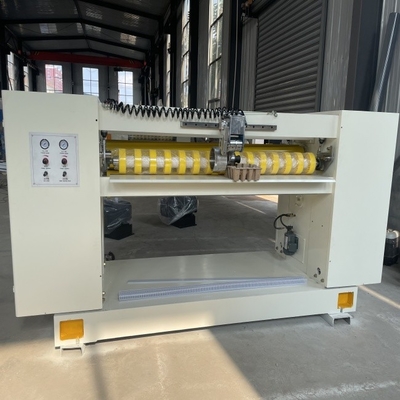

Machine details picture
NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 0
NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 1
NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 2NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 3NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 4NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 5
 NC Cutter For Corrugated Cardboard Production Line Lubrication Pump Circulation Lubrication 6
