Nazwa produktu: Frez NC
Efektywna szerokość: 2200 mm
Kierunek operacji: Dostosowywalne
Maksymalna prędkość robocza: 100M/MIN
Konfiguracja mechaniczna: Przecinarka spiralna sterowana komputerowo
Minimum cutting length: 500mm
Maximum cutting length: 9999mm
Precyzja cięcia: jednolite ± 1 mm, niejednolite ± 2 mm
Equipment size: Lmax4.2*Wmax1.2*Hmax1.4
Pojedyncza waga: MAX3500 kg
Podkreślić:

Linia produkcyjna NC Cutter

,

Cięcia NC z tektury falistej

,

Precyzyjne cięcie NC

Podstawowe informacje
Miejsce pochodzenia: Dongguang, Chiny
Nazwa handlowa: GERUN
Orzecznictwo: ISO,CE
Model Number: GR-NC
Zapłata
Szczegóły pakowania: Pokrycie folią z tworzywa sztucznego lub opakowanie z drewna (wybrane)
Czas dostawy: 10 ~ 30 dni roboczych
Zasady płatności: T/T
Możliwość Supply: 30 zestawów/miesiąc
opis produktu

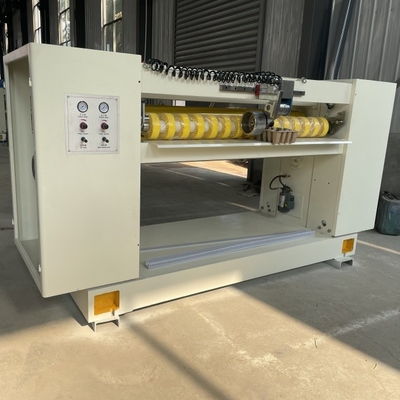

NC-100 NC cutter helical knives



The corrugated paper cross-cutting machine, also known as a cross-cutting machine, falls under the category of carton processing machinery. Within a corrugated cardboard production line, the corrugated paper cross-cutting machine is the equipment used for cutting the cardboard into finished products. Its technical performance and equipment adjustment directly impact the precision of the final cut size, whether the creases break, and the smoothness and appearance of the cut edges of the finished cardboard.


The corrugated paper cross-cutting machine is one of the essential standalone machines in a corrugated cardboard production line. There are two types of cross-cutting machines based on the transmission control method: mechanical cross-cutting machines and computer-controlled cross-cutting machines. Computer-controlled cross-cutting machines are operated through industrial control computers. They cut the cardboard by controlling the rotation of the knife shaft based on the preset length. Combined with precise mechanical transmission, these machines can keep cutting errors within a range of ±1mm. Computer-controlled cross-cutting machines include helical knife cross-cutting machines and straight knife cross-cutting machines. Helical knife cross-cutting machines are more suitable for high-speed cutting of thick cardboard, providing smooth cuts and longer blade life.



Usage and Features:

  1. Design Speed: 100-150m/min; Effective Width: 1400-2200mm

  2. Can store 200 sets of orders, allowing for quick and accurate changes in paper cutting specifications without stopping the machine. It can also be connected to a computer network for convenient production management.

  3. The knife shaft drive gears are made of precision-forged steel material with high-frequency quenching, achieving backlash-free transmission. Advanced seamless connection methods are utilized for high transmission accuracy.

  4. The cross-cutting machine blades feature an inlaid steel spiral blade structure with a sawtooth blade shape. Scissor-type cutting results in minimal cutting force and long blade life.

  5. Both front and rear paper feed wheels employ a sun gear pressure paper method, ensuring smooth and even conveyance without damaging the board or causing blockages.

  6. This machine utilizes regenerative braking (non-energy-consuming braking), leading to low energy consumption during production. The average power consumption is one-third of a regular NC cutting machine, saving over 70% and achieving cost-saving goals.



Functional Features:

  • All gears of this machine are precision-ground from high-quality steel, ensuring smooth transmission, low noise, and long lifespan.
  • The advanced structure of the blade holder allows for easy adjustment, with the knife shaft treated for static balance and smooth operation.
  • The machine's transmission mechanism utilizes a lubrication pump for circulating lubrication.
  • Equipped with a new generation computer system from Taiwan or Germany, offering excellent performance and extended trouble-free operation.
  • Users can choose between imported and domestically produced blades.
  • Suitable for corrugated cardboard production lines with three, five, or seven layers.

Structural feature:

  • It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.
  • Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
  • Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life
  • Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage
  • This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
  • Precision adjustable no gap gear to ensure precise blade engagement, running balance.
  • Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling
  • Knife roller: fine quality forged steel material, the balanced, with good stability.

Roller diameter parameters:

  • Cross on the knife shaft center distance:¢216mm
  • Before the lower conveying roller diameter ¢156mm
  • After the lower conveying roller diameter: ¢156mm
  • The front of the platen roller diameter: ¢70mm
  • The front of the platen roller diameter: ¢70mm
Name of main parts Brands or place of origin Material and type
Full AC servo motor Shanghai futian 18.5KW
Feeding frequency motor Hebei hengshui yongshun
bearing HRB,ZWZ,LYC Up and down the knife roller bearings from Japan NSK
belt Germany OPTIBELT
Up sleeve Xianyang chaoyue
Seat belt bearing Zhejiang wuhuan
Contactors and relays, relays of middle France Schneider
Proximity Switch Japan OMRON
Flying shear servo control system America Emerson
Motion control board Germany MKS-CT150
Rotary encoder Wuxi ruipu
Feeding drive Taiwan delta
Human Machine Interface Taiwan WEINVIEW or MCGS
Sun gear China shenzhen
Pneumatic components Zhejiang sonorCSM
Frequency Converter Siemens



Product Features:

  • Utilizes imported servo motors and control systems.

  • Dual drive system ensures stability at high speeds, guaranteeing precision in cutting cardboard.

  • Employs regenerative braking with high-power capacitor energy storage for efficient energy savings and increased production efficiency.

  • Mobile paper feeding assembly facilitates blade adjustment and maintenance, enabling double-layer cutting at speeds of up to 300m/min.


Machine details picture
