NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery

1
MOQ
USD1000~10,000/set
Cena £
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Nazwa produktu: Frez NC
Efektywna szerokość: 2200 mm
Kierunek operacji: Dostosowywalne
Maksymalna prędkość robocza: 100M/MIN
Konfiguracja mechaniczna: Przecinarka spiralna sterowana komputerowo
Minimalna długość cięcia: 500 mm
Maksymalna długość cięcia: 9999 mm
Precyzja cięcia: jednolite ± 1 mm, niejednolite ± 2 mm
Rozmiar sprzętu: Lmax4,2*Wmax1,2*Hmax1.4
Pojedyncza waga: MAX3500 kg
Podkreślić:

Części i akcesoria do urządzeń do produkcji kartonu falistego

,

NC Cutter dla tektury falistej

,

Maszyny do obróbki kartonów

Podstawowe informacje
Miejsce pochodzenia: Dongguang, Chiny
Nazwa handlowa: GERUN
Orzecznictwo: ISO,CE
Numer modelu: GR-NC
Zapłata
Packaging Details: Plastic film covering or wooden case packaging(choosed)
Czas dostawy: 10 ~ 30 dni roboczych
Zasady płatności: T/T
Możliwość Supply: 30 zestawów/miesiąc
opis produktu

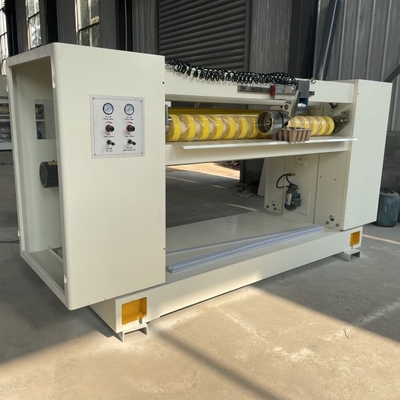

NC-100 NC cutter helical knives



The corrugated paper cross-cutting machine, also known as a cross-cutting machine, falls under the category of carton processing machinery. Within a corrugated cardboard production line, the corrugated paper cross-cutting machine is the equipment used for cutting the cardboard into finished products. Its technical performance and equipment adjustment directly impact the precision of the final cut size, whether the creases break, and the smoothness and appearance of the cut edges of the finished cardboard.


The corrugated paper cross-cutting machine is one of the essential standalone machines in a corrugated cardboard production line. There are two types of cross-cutting machines based on the transmission control method: mechanical cross-cutting machines and computer-controlled cross-cutting machines. Computer-controlled cross-cutting machines are operated through industrial control computers. They cut the cardboard by controlling the rotation of the knife shaft based on the preset length. Combined with precise mechanical transmission, these machines can keep cutting errors within a range of ±1mm. Computer-controlled cross-cutting machines include helical knife cross-cutting machines and straight knife cross-cutting machines. Helical knife cross-cutting machines are more suitable for high-speed cutting of thick cardboard, providing smooth cuts and longer blade life.


Structural feature:

  • It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.
  • Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
  • Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life
  • Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage
  • This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
  • Precision adjustable no gap gear to ensure precise blade engagement, running balance.
  • Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling
  • Knife roller: fine quality forged steel material, the balanced, with good stability.

Roller diameter parameters:

  • Cross on the knife shaft center distance:¢216mm
  • Before the lower conveying roller diameter ¢156mm
  • After the lower conveying roller diameter: ¢156mm
  • The front of the platen roller diameter: ¢70mm
  • The front of the platen roller diameter: ¢70mm

Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing

Power motors and electrical parameters:

  • main drive motor power:18.5KW Full AC synchronous servo
  • Before and after feeding motor power:3KW(Frequency Control)
  • Lubricating oil pump motor power:0.25KW

Mainly purchased parts, raw materials and origin:



Name of main parts Brands or place of origin Material and type
Full AC servo motor Shanghai futian 18.5KW
Feeding frequency motor Hebei hengshui yongshun
bearing HRB,ZWZ,LYC Up and down the knife roller bearings from Japan NSK
belt Germany OPTIBELT
Up sleeve Xianyang chaoyue
Seat belt bearing Zhejiang wuhuan
Contactors and relays, relays of middle France Schneider
Proximity Switch Japan OMRON
Flying shear servo control system America Emerson
Motion control board Germany MKS-CT150
Rotary encoder Wuxi ruipu
Feeding drive Taiwan delta
Human Machine Interface Taiwan WEINVIEW or MCGS
Sun gear China shenzhen
Pneumatic components Zhejiang sonorCSM
Frequency Converter Siemens



Product Features:

  • Utilizes imported servo motors and control systems.

  • Dual drive system ensures stability at high speeds, guaranteeing precision in cutting cardboard.

  • Employs regenerative braking with high-power capacitor energy storage for efficient energy savings and increased production efficiency.

  • Mobile paper feeding assembly facilitates blade adjustment and maintenance, enabling double-layer cutting at speeds of up to 300m/min.


Machine details picture
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 0
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 1
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 2NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 3NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 4NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 5
 NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 6


Operation

操作
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 7

① Turn on—启动

② E-STOP—急停

③ Turn off—关机

④ Manual/Automatic—手动/自动

⑤ Speed adjustment—速度调节

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 8








































Change the operation language:English or 中文(Chinese)



Turn on the main power supply

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 9



Click the “Turn on”button


In automatic mode, the machine needs to be connected to a double facer, and the machine will automatically control the running speed.
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 10NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 11


In manual mode, the operating speed is manually adjusted through the potentiometer. (The operating speed should be slightly higher than the production line speed)
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 12

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 13
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 14



Click the NC cutting control

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 15



Setting the “Processing Length”and“Processing Quantity”.

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 16



Click the “NC cutting start”,Speed up,The machine will start working.

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 17

NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 18



Setting the new“Processing Length”and“Processing Quantity”,Will change the order.
NC Cutter For Corrugated Cardboard Production Line Carton Processing Machinery 16
