Nazwa produktu: Frez NC
Efektywna szerokość: 2200 mm
Kierunek operacji: Dostosowywalne
Highest working speed: 100m/min
Konfiguracja mechaniczna: Przecinarka spiralna sterowana komputerowo
Minimalna długość cięcia: 500 mm
Maksymalna długość cięcia: 9999 mm
Precyzja cięcia: jednolite ± 1 mm, niejednolite ± 2 mm
Rozmiar sprzętu: Lmax4,2*Wmax1,2*Hmax1.4
Pojedyncza waga: MAX3500 kg
Podkreślić:

Systemy sterowania Linia produkcyjna tektury falistej

,

Importowane silniki serwowe NC Cutter

,

Linia produkcyjna tektury falistej NC Cutter

Podstawowe informacje
Miejsce pochodzenia: Dongguang, Chiny
Nazwa handlowa: GERUN
Orzecznictwo: ISO,CE
Numer modelu: GR-NC
Zapłata
Packaging Details: Plastic film covering or wooden case packaging(choosed)
Czas dostawy: 10 ~ 30 dni roboczych
Zasady płatności: T/T
Możliwość Supply: 30 zestawów/miesiąc
opis produktu

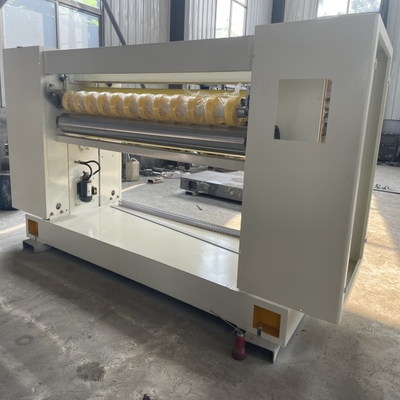

NC-100 NC cutter helical knives

Structural feature:

  • It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.
  • Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
  • Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life
  • Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage
  • This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
  • Precision adjustable no gap gear to ensure precise blade engagement, running balance.
  • Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling
  • Knife roller: fine quality forged steel material, the balanced, with good stability.

Roller diameter parameters:

  • Cross on the knife shaft center distance:¢216mm
  • Before the lower conveying roller diameter ¢156mm
  • After the lower conveying roller diameter: ¢156mm
  • The front of the platen roller diameter: ¢70mm
  • The front of the platen roller diameter: ¢70mm

Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing

Power motors and electrical parameters:

  • main drive motor power:18.5KW Full AC synchronous servo
  • Before and after feeding motor power:3KW(Frequency Control)
  • Lubricating oil pump motor power:0.25KW

Mainly purchased parts, raw materials and origin:



Name of main partsBrands or place of originMaterial and type
Full AC servo motorShanghai futian18.5KW
Feeding frequency motorHebei hengshui yongshun
bearingHRB,ZWZ,LYCUp and down the knife roller bearings from Japan NSK
beltGermany OPTIBELT
Up sleeveXianyang chaoyue
Seat belt bearingZhejiang wuhuan
Contactors and relays, relays of middleFrance Schneider
Proximity SwitchJapan OMRON
Flying shear servo control systemAmerica Emerson
Motion control boardGermany MKS-CT150
Rotary encoderWuxi ruipu
Feeding driveTaiwan delta
Human Machine InterfaceTaiwan WEINVIEW or MCGS
Sun gearChina shenzhen
Pneumatic componentsZhejiang sonorCSM
Frequency ConverterSiemens



Product Features:

  • Utilizes imported servo motors and control systems.

  • Dual drive system ensures stability at high speeds, guaranteeing precision in cutting cardboard.

  • Employs regenerative braking with high-power capacitor energy storage for efficient energy savings and increased production efficiency.

  • Mobile paper feeding assembly facilitates blade adjustment and maintenance, enabling double-layer cutting at speeds of up to 300m/min.


Machine details picture
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 0
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 1
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 2NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 3NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 4NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 5
 NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 6


Operation

操作
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 7

① Turn on—启动

② E-STOP—急停

③ Turn off—关机

④ Manual/Automatic—手动/自动

⑤ Speed adjustment—速度调节

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 8








































Change the operation language:English or 中文(Chinese)



Turn on the main power supply

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 9



Click the “Turn on”button


In automatic mode, the machine needs to be connected to a double facer, and the machine will automatically control the running speed.
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 10NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 11


In manual mode, the operating speed is manually adjusted through the potentiometer. (The operating speed should be slightly higher than the production line speed)
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 12

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 13
NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 14



Click the NC cutting control

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 15



Setting the “Processing Length”and“Processing Quantity”.

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 16



Click the “NC cutting start”,Speed up,The machine will start working.

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 17

NC Cutter dla linii produkcyjnej tektury falistej wykorzystuje importowane systemy sterowania serwomotorami 18



Setting the new“Processing Length”and“Processing Quantity”,Will change the order.
